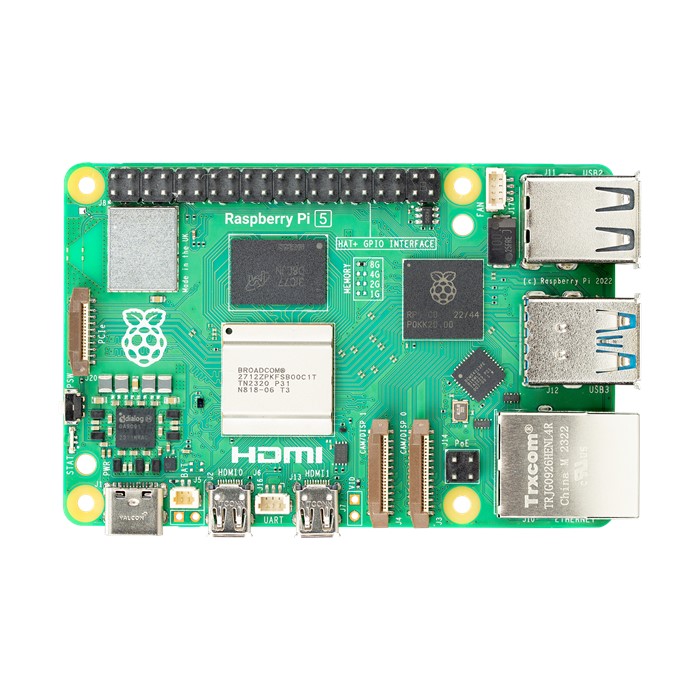

Raspberry Pi 5 2G R18

DescriptionThe Raspberry Pi 5 2GB redefines what a single-board computer can do. It keeps the affordable price tag of the entry-level models but delivers the raw power of the flagship BCM2712 processor. At Faranux Electronics, we recommend this board for users who want the modern architecture of the Pi 5—including PCIe and the new I/O controller—without paying for extra RAM they might not need.System on chip Broadcom BCM2712, 2.4GHz quadcore 64-bit ARM Cortex-A76 with 512KB L2 caches and a 2MB shared L3 cache2GB LPDDR4X-4267 SDRAMDual 4K 60Hz HDMI display output with HDR supportDual-band 2.4GHz and 5.0GHz 802.11ac WiFiBluetooth 5.0 / Bluetooth Low Energy (BLE)microSD card slot, with support for high-speed SDR104 mode2x USB 3.0 ports, supporting simultaneous 5Gb/s operation2x USB 2.0 portsGigabit Ethernet, with PoE support (requires separate PoE HAT)PCI-Express 2.0 x1 interface for fast peripherals (requires separate M.2 HAT or other adaptor)5V/5A DC power via USB-C, with Power Delivery supportRaspberry Pi standard 40-pin GPIO headerReal-time clock (RTC), powered from external batteryOnboard power buttonUnmatched PerformanceAt the heart of the board sits a 64-bit Quad-Core Arm Cortex-A76 processor running at 2.4GHz.Faster Processing: It performs tasks roughly two to three times faster than the Pi 4.RP1 I/O Controller: For the first time, a separate chip handles input/output tasks like USB and Ethernet. This ensures that your USB transfers don’t slow down the main CPU.2GB RAM: This memory capacity is perfect for running lightweight servers, retro gaming setups, or home automation systems like Home Assistant.PCIe Expansion (NVMe SSDs)The most exciting addition to the Raspberry Pi 5 2GB is the PCIe 2.0 x1 interface. By using an M.2 HAT, you can connect super-fast NVMe SSDs directly to the board. This allows for lightning-fast boot times and massive storage, far superior to standard MicroSD cards.Modern FeaturesThe Pi 5 fixes many user complaints from previous generations.Power Button: Finally, the board includes a physical on/off button.RTC Battery Connector: Keep the time accurate even when offline (battery sold separately).Fan Connector: A dedicated header powers and controls the Raspberry Pi 5 Active Cooler automatically based on temperature.Power and Cooling RequirementsPlease note that the increased speed generates more heat and uses more power.Cooling: You must use active cooling (a fan and heatsink) for this board. Passive cooling is not enough for heavy loads.Power: We recommend the official 27W USB-C Power Supply. While the board works with older 5V 3A adapters, it will limit current to the USB ports to prevent crashing.Upgrade TodayExperience the future of the Raspberry Pi. Order the Raspberry Pi 5 2GB from Faranux Electronics and build your fastest project yet.
