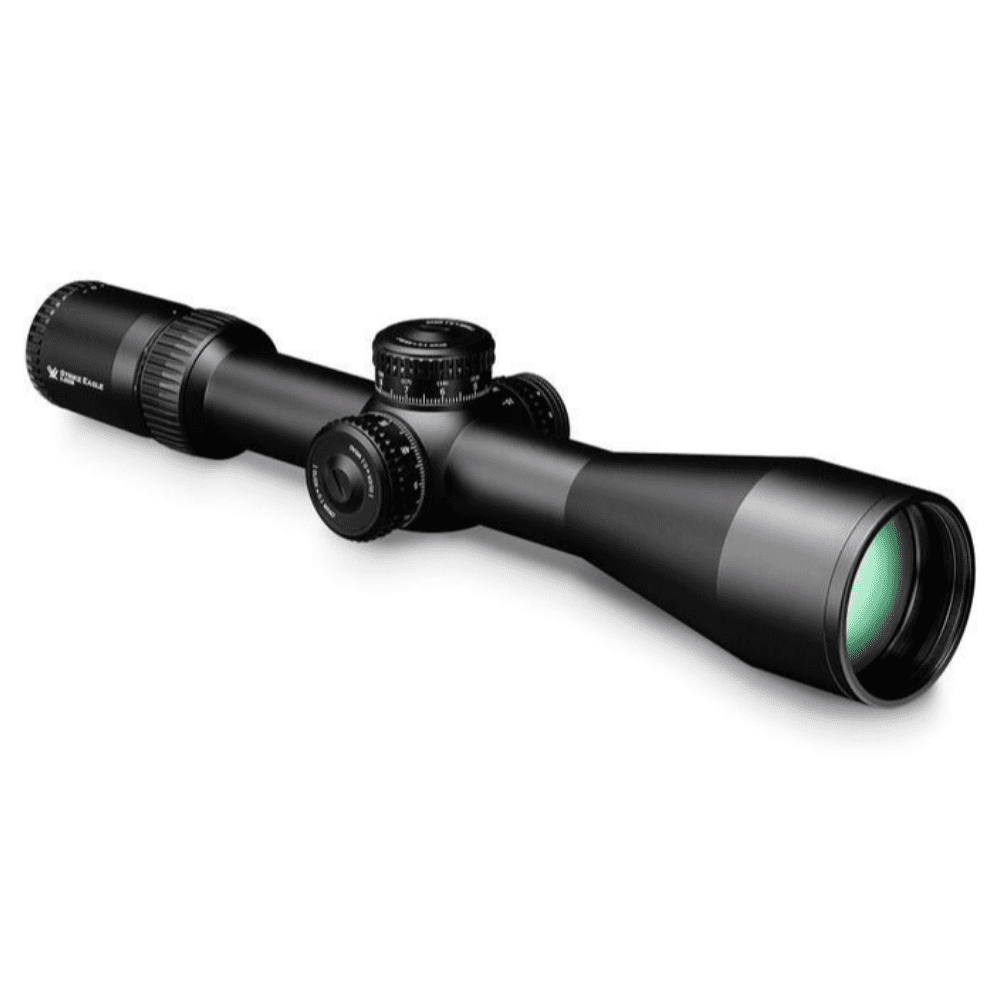

Vortex Strike Eagle® 5-25×56 FFP EBR-7C (MRAD) Reticle | 34mm Tube

Specifications Magnification – 5–25x Objective Lens Diameter – 56 mm Focal Plane – First Focal Plane Reticle – EBR-7C (MRAD) Eye Relief – 3.8″ Field of View – 24.0′ – 5.2′ @ 100 yds Turret Style – Exposed Tube Size – 34 mm Adjustment Graduation – 0.1 MRAD Travel Per Rotation – 10 MRAD Max Elevation Adjustment – 31 MRAD Max Windage Adjustment – 23 MRAD Parallax Setting – 15 yds – ∞ Length – 14.6″ Weight – 30.4 oz Strike Eagle 5-25×56 FFP Dimensions (in inches) Lengths L1 L2 L3 L4 L5 L6 14.6 2.0 2.6 6.4 4.75 3.6 Heights H1 H2 2.5 1.8 Recommended uses: Long range shooting, competition and recreational shooting View Here for the Reticle Manual View Here for the Parts Diagram Feature Tech XD™ Optical System – Premium optical system delivers impressive resolution, edge-to-edge sharpness, greatly reduces chromatic aberration, and guarantees bright, high-contrast images. RevStop® Zero System – Patented streamlined design offers an easy to set, reliable return to zero after turret adjustments. Fully Multi-Coated Lenses – Anti-reflective coatings on all air-to-glass surfaces provide increased light transmission for greater clarity and low-light performance. Exposed Locking Elevation Turret – Integrated locking mechanism prevents accidental adjustment. Elevation turret provides fast, accurate, easily read elevation adjustions. First Focal Plane Reticle – A first focal plane reticle is located within the riflescope near the windage and elevation turrets. The scale of reticle remains in proportion to the zoomed image. Constant subtensions allow accurate holdover and ranging at all magnifications. The reticle’s size will appear larger at high magnifications and smaller at low magnification. Illuminated Reticle – Provides precise aiming under low-light conditions. Single-Piece Tube – Maximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness. Nitrogen Gas Purged – Gas purged and O-ring sealed for fogproof and waterproof performance in all conditions. Fast-Focus Eyepiece – Allows for quick and easy reticle focusing. Throw Lever – The included throw lever can be installed for quick and easy magnification adjustments. Aircraft Grade Aluminum – Constructed from a solid block of aircraft-grade aluminum for strength and rigidity. ArmorTek® – Ultra-hard exterior lens coatings defend against scratches, oil, and dirt. Low-Glare Matte Black Anodize – Corrosion and wear resistant anodization provides low-glare matte surface and helps camouflage the shooter’s position. Waterproof – Designed to withstand harsh weather conditions. Fogproof – Designed to withstand a wide range of temperatures. Shockproof – Designed to withstand the highest levels of recoil and impact. WHAT’S IN THE BOX Strike Eagle® 5-25×56 FFP Sunshade Lens Cloth CR2032 Battery Turret Tool 2mm Hex Wrench Throw Lever Rubber Style Lens Covers RevStop® Zero Ring
