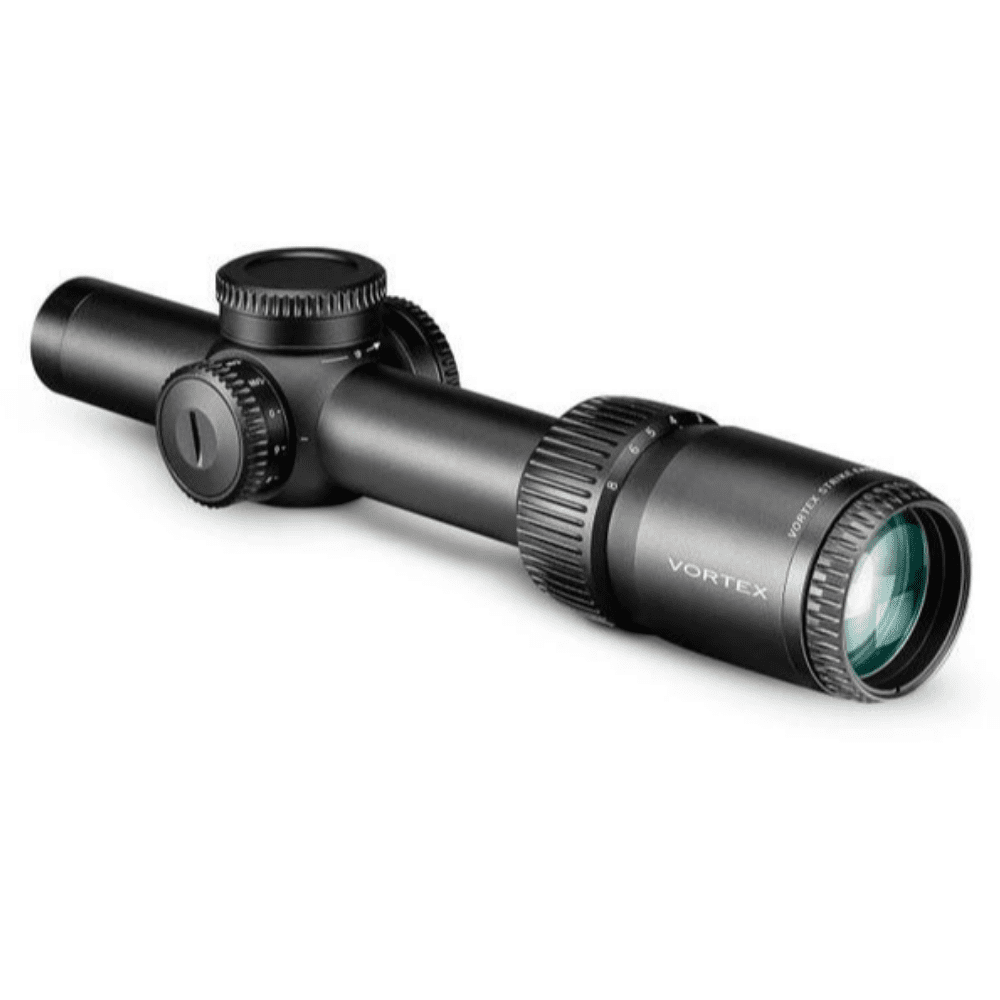

Vortex Strike Eagle® 1-8×24 FFP EBR-8 BDC (MOA) Reticle | 30mm Tube

Strike Eagle 1-8×24 FFP Dimensions (in inches) Lengths L1 L2 L3 L4 L5 10.4 1.9 2.5 6.0 3.8   Heights H1 H2 1.18 1.89 Specifications Magnification – 1–8x Objective Lens Diameter – 24 mm Focal Plane – First Focal Plane Reticle – EBR-8 BDC (MOA) Eye Relief – 3.9″ Field of View – 113.6′ – 14.1′ @ 100 yds Turret Style – Capped Tube Size – 30 mm Adjustment Graduation – 1/4 MOA Travel Per Rotation – 25 MOA Max Elevation Adjustment – 145 MOA Max Windage Adjustment – 145 MOA Parallax Setting – 125 yds Length – 10.4″ Weight – 23.9 oz Feature Tech Fully Multi-Coated Lenses – Anti-reflective coatings on all air-to-glass surfaces provide increased light transmission for greater clarity and low-light performance. First Focal Plane Reticle – A first focal plane reticle is located within the riflescope near the windage and elevation turrets. The scale of reticle remains in proportion to the zoomed image. Constant subtensions allow accurate holdover and ranging at all magnifications. The reticle’s size will appear larger at high magnifications and smaller at low magnification. Illuminated Reticle – Provides precise aiming under low-light conditions. Nitrogen Gas Purged – Gas purged and O-ring sealed for fogproof and waterproof performance in all conditions. Fast-Focus Eyepiece – Allows for quick and easy reticle focusing. Throw Lever – The included throw lever can be installed for quick and easy magnification adjustments. Aircraft Grade Aluminum – Constructed from a solid block of aircraft-grade aluminum for strength and rigidity. ArmorTek® – Ultra-hard exterior lens coatings defend against scratches, oil, and dirt. Low-Glare Matte Black Anodize – Corrosion and wear resistant anodization provides low-glare matte surface and helps camouflage the shooter’s position. Waterproof – Designed to withstand harsh weather conditions. Fogproof – Designed to withstand a wide range of temperatures. Shockproof – Designed to withstand the highest levels of recoil and impact. Reticle EBR-8 BDC (MOA) Our exclusive EBR-8 BDC MOA first focal plane, glass-etched, illuminated reticle facilitates rapid shooting from point blank out to 600 yards with popular .223/5.56mm and .308/7.62mm loads. This reticle also can be used with a wide variety of other calibers and loads using the BDC hashmarks. Suspension View Parts Diagram Reticle Manual  WHAT’S IN THE BOX Strike Eagle® 1-8×24 FFP Throw Lever Flip Caps Lens Cloth Sunshade CR2032 Battery 2mm Hex Wrench
