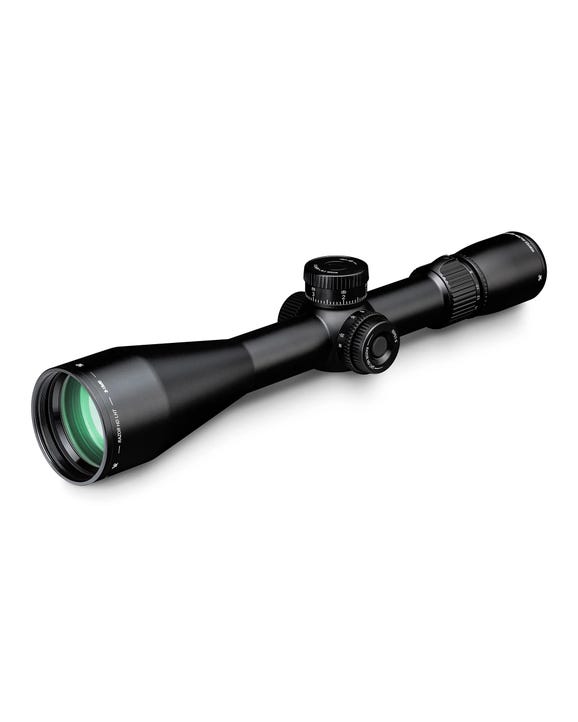

Vortex Razor® HD LHT™ 3-15×50 G4i BDC (MRAD) Reticle | 30mm Tube

Specifications Magnification – 3-15x Objective Lens Diameter – 50 mm Focal Plane – Second Focal Plane Reticle – G4i BDC (MRAD) Eye Relief – 3.8″ Field of View – 35.3′ – 7.0′ @ 100 yds Turret Style – Exposed Elevation Capped Windage Tube Size – 30mm Adjustment Graduation – .1 MRAD Travel Per Rotation – 6 MRAD Max Elevation Adjustment – 23 MRAD Max Windage Adjustment – 23 MRAD Parallax Setting – 20 m – ∞ Length – 13.6″ Weight – 20.5 oz Razor HD LHT 3-15×50 Dimensions (in inches) Lengths L1 L2 L3 L4 L5 L6 13.6 2.1 2.0 5.6 4.3 3.4 Heights H1 H2 2.3 1.7 Reticle G4i BDC (MRAD) G4i-BDC reticle can be used effectively with a variety of firearms, including high powered rifles, rimfire rifles, blackpowder rifles, and slug shotguns. This reticle also provides reference marks to compensate for bullet drop and bullet drift in windy conditions. Click Here for the Suspension View Click Here for the Reticle Manual Click Here for the Parts Diagram Feature Tech Class Leading HD Optical System – Stunning resolution and class-leading field of view combine to create our most advanced optical system. RevStop® Zero System – Patented streamlined design offers an easy to set, reliable return to zero after turret adjustments. XR™ Plus Lens Coatings – Ultimate anti-reflective coatings on all air-to-glass surfaces provide maximum light transmission for peak clarity and the pinnacle of low-light performance. Locking Elevation Turret – Integrated locking mechanism prevents accidental adjustments. Elevation turret provides fast, accurate, easily read elevation adjustments. Lightweight Design – 20.5 oz. APO (Apochromatic) System – Index-matched lenses correct color across the entire visual spectrum. Argon Gas Purged – Gas purged and O-ring sealed for superior fogproof and waterproof performance in the most extreme conditions. Optically Indexed Lenses – Optimize image sharpness and brightness from edge to edge. Aircraft Grade Aluminum – Constructed from a solid block of aircraft-grade aluminum for strength and rigidity. ArmorTek® – Ultra-hard exterior lens coatings defend against scratches, oil, and dirt. Low-Glare Matte Black Anodize – Corrosion and wear resistant anodization provides low-glare matte surface and helps camouflage the shooter’s position. Waterproof – Designed to withstand harsh weather conditions. Fogproof – Designed to withstand a wide range of temperatures. Shockproof – Designed to withstand the highest levels of recoil and impact. What Is In The Box Razor® HD LHT™ 3-15×50 Sunshade Lens Covers Lens Cloth CR2032 Battery RevStop® Zero Ring
