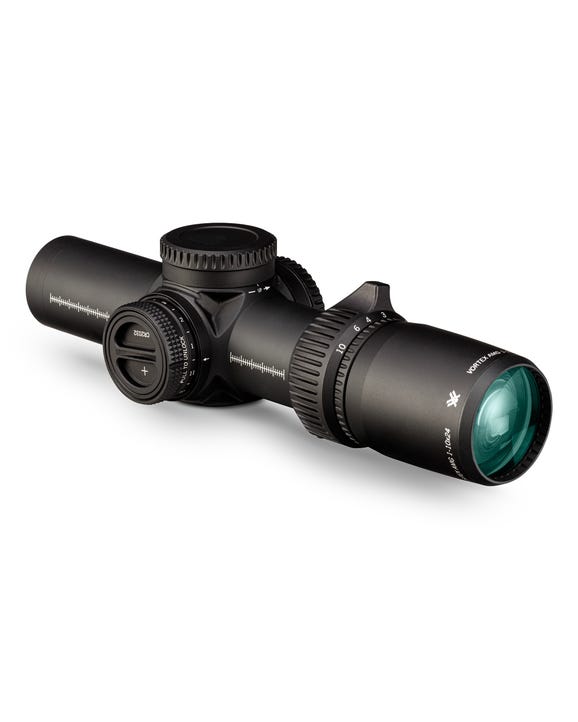

Vortex AMG® 1-10×24 FFP EBR-9 (MRAD) Reticle | 34mm

AMG 1-10×24 FFP Dimensions (in inches) Lengths L1 L2 L3 L4 L5 L6 8.4 1.97 1.12 4.86 0.38 3.20 Heights H1 H2 1.33 1.74 Recommended Uses – Military and Law Enforcement Specifications Magnification: 1-10x Objective Lens Diameter: 24 mm Focal Plane: First Focal Plane Reticle: EBR-9 (MRAD) Eye Relief: 3.3″ Field of View: 116.0′ – 12.0′ @ 100 yds. Turret Style: Dual Zero – Capped Tube Size: 34mm Adjustment Graduation: .1 MRAD Travel Per Rotation: 10 MRAD Max Elevation Adjustment: 30 MRAD Max Windage Adjustment: 30 MRAD Parallax Setting: 250 yds Length: 8.4″ Weight: 18.8 oz. Features and Tech Class Leading HD Optical System: Stunning resolution and class-leading field of view for advanced optical performance. Dual Zero Turrets: Switch between zeros for suppressed, unsuppressed, long- or short-range loads. Toolless Turrets: Fast, tool-free zeroing with reliable return and micro adjustment. Compact and Lightweight: Just 8.4″, ideal for short-barreled carbines and freeing up rail space. Integrated Throw Lever: 120° throw for faster transitions with a low-profile, snag-free design. APO (Apochromatic): Index-matched lenses correct colour across the full visual spectrum. XR™ Plus Lens Coatings: Anti-reflective coatings maximize light transmission and low-light performance. Locking Fast Focus Diopter: Keeps your reticle sharp and secure. Plasma Tech: Advanced coating process for superior durability and performance. Glass-Etched Reticle: Intricate design protected between glass layers for durability and reliability. Aircraft Grade Aluminum: Built from a solid block for maximum strength and rigidity. ArmorTek®: Scratch-resistant coating protects lenses from oil, dirt, and damage. Low-Glare Matte Black Anodize: Corrosion-resistant finish that reduces glare and improves concealment. Locking Side Illumination: Left-side dial with 11 brightness levels and off positions between settings. Argon Gas Purged: O-ring sealed for reliable fogproof and waterproof performance. Made in USA with US and Global Parts: Precision engineered, machined, and assembled to tight tolerances. Waterproof: Built to handle harsh weather conditions. Fogproof: Performs across a wide temperature range. Shockproof: Designed to withstand heavy recoil and impact. What’s In The Box AMG® 1-10×24 FFP Sunshade Defender® Flip Caps Lens Cloth CR2032 Battery Custom Challenge Coin Reticle EBR-9 (MRAD) Designed for use in close-quarters and long-range shooting, the EBR-9 reticle can be used to effectively determine ranges, holdovers, and windage corrections. Manuals & parts Parts Diagram Product Manual Reticle Manual Suspension View Unlimited, Unconditional, Vortex Warranty! The VIP® Warranty isn’t just lip service; it’s our Very Important Promise to you. If your Vortex® product—whether a riflescope, red dot, rangefinder, apparel, or accessory—becomes damaged or defective, we’ll repair or replace it at no charge to you. It doesn’t matter how it happened, whose fault it was, or where you purchased it. If you have a problem, we promise to take care of you. Rest assured, if it wears the Vortex® name, it’s covered.
