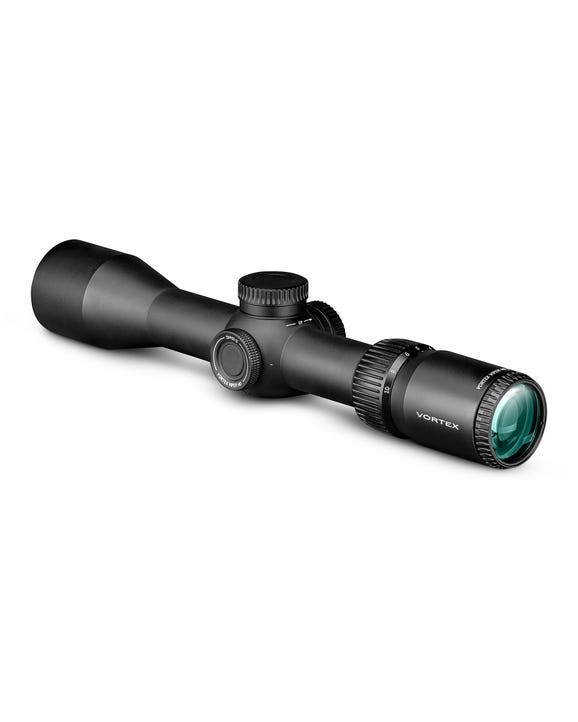

Vortex Viper® HD 2-10×42 Illuminated Dead-Hold® BDC (MOA) Reticle | 30mm Tube

Viper® HD 2-10×42 Dimensions (in inches) Lengths L1 L2 L3 L4 L5 L6 12.1 2.1 1.8 5.5 3.5 3.4 Heights H1 H2 1.95 1.7 View Reticle Manual View Parts Diagram View Suspension View Specifications Magnification: 2–10x Objective Lens Diameter: 42 mm Focal Plane: Second Focal Plane Reticle: Illuminated Dead-Hold® BDC (MOA) Eye Relief: 3.4″ Field of View: 61.6′ – 11.9′ @ 100 yds Turret Style: Capped Tube Size: 30 mm Adjustment Graduation: 1/4 MOA Travel Per Rotation: 25 MOA Max Elevation Adjustment: 135 MOA Max Windage Adjustment: 135 MOA Parallax Setting: 100 yds Length: 12.1″ Weight: 19.9 oz Feature Tech HD Optical System: Optimized with select glass elements to deliver exceptional resolution, reduced chromatic aberration, and outstanding color fidelity with edge-to-edge sharpness and excellent light transmission. Fully Multi-Coated Lenses: Anti-reflective coatings on all air-to-glass surfaces increase light transmission for improved clarity and low-light performance. Illuminated Reticle: Provides precise aiming in low-light conditions. Single-Piece Tube: Enhances alignment for better accuracy and visual performance while ensuring strength and waterproof reliability. Argon Gas Purged: O-ring sealed and gas purged for superior fogproof and waterproof performance in extreme conditions. Fast-Focus Eyepiece: Enables quick and easy reticle focusing. Aircraft Grade Aluminum: Built from a solid block of aircraft-grade aluminum for maximum strength and rigidity. ArmorTek®: Ultra-hard lens coatings protect against scratches, oil, and dirt. Low-Glare Matte Black Anodize: Corrosion- and wear-resistant finish that reduces glare and helps conceal the shooter’s position. Waterproof: Designed to perform in harsh weather conditions. Fogproof: Maintains clarity across a wide range of temperatures. Shockproof: Engineered to withstand heavy recoil and impact. Reticle ILLUMINATED DEAD-HOLD® BDC (MOA) Customized hashmark design helps eliminate guesswork on holdover and windage corrections. Good for hunting and shooting at varying ranges, where estimating holdover is a concern. What’s In The Box Viper® HD 2-10×42 Neoprene Cover Sunshade Lens Cloth CR2032 Battery   Vortex Warranty The VIP® Warranty isn’t just lip service; it’s our Very Important Promise to you. If your Vortex® product—whether a riflescope, red dot, rangefinder, apparel, or accessory—becomes damaged or defective, we’ll repair or replace it at no charge to you. It doesn’t matter how it happened, whose fault it was, or where you purchased it. If you have a problem, we promise to take care of you. Rest assured, if it wears the Vortex® name, it’s covered.
